AESV3S_AESU3S Fire Pump Motor Series in Gujarat, India.

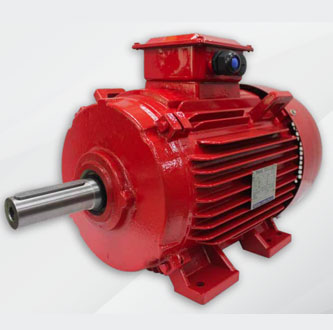

AESV3S_AESU3S Fire Pump Motor Series

Complies with the requirement stipulated by the UL Standards accordingly to UL 1004-1 UL 1004-5.
Range : 2 Pole 15KW to 315KW
Continuous rated duty type S1
380~415V 3Ph 50Hz
Class F Insulation with S.F 1.15 at Amb. Temp. 40 deg. C
Totally Enclosed Fan Cooled (IC411)
IE3, motor type, meets to exceeds IEC60034-30-1 (2014) Minimum High Efficiency Performance standard, table B7
Cast Iron Construction with top mounted terminal box.
Frame size 160M to 355L
IP55 protection rating.
Red Colour (Munsell 7.5R 9/20)
Mounting Available : Foot (B3), D Flange (V1)
